Simulating a single screw extruder in SOLIDWORKS can transform your design process. By modeling material flow, you can fine-tune your extrusion design for better performance.
In this article, we’ll explore how to effectively model a flow simulation for a single screw extruder. You’ll learn the essential steps for creating accurate simulations and optimizing your extruder design.
The first step in any simulation process is creating the 3D model of the single screw extruder. In SOLIDWORKS, you can start by designing the key components of the extruder, such as the screw, barrel, and other critical features. It’s essential to ensure that the model represents the geometry and dimensions that will be used in the flow simulation.
● Screw and Barrel Design: Start by designing the screw with the appropriate flight profile and barrel to match the material you are working with. Ensure the screw geometry is accurate to simulate realistic material flow.
● Inlet and Outlet: Design the inlet where the plastic material enters and the outlet where the extruded product exits. These elements are crucial for defining boundary conditions during the simulation.
A fundamental requirement in flow simulation is that the model represents a closed fluid volume. SOLIDWORKS Flow Simulation works best when the fluid is confined within a sealed environment, so be sure to close any gaps or openings in your model.
● Checking Geometry: Use SOLIDWORKS tools to check and fix any geometry issues that might prevent your model from being valid for simulation. These tools help ensure that your model is watertight, allowing for accurate fluid flow predictions.
In addition to the basic geometry, you need to incorporate certain functional features:
● Plastic Material Inlet: Include an inlet for the solid plastic material.
● Extruded Product Outlet: Design the outlet where the final extruded product exits.
Once your model is ready, launch the SOLIDWORKS Flow Simulation Wizard to set up your simulation project. The wizard will guide you through the process, allowing you to specify key parameters and customize your simulation.
● Project Parameters: Define the type of analysis you wish to perform, such as steady-state flow or transient heat transfer.
● Fluid Properties: Select or create the properties of the molten plastic, taking into account its non-Newtonian behavior. This is crucial for simulating the flow of materials like PVC, PE, or other polymers used in extrusion.
Boundary conditions are essential in defining how the extruder operates in the simulation:
● Rotating Screw: Assign a rotating wall boundary condition to simulate the screw's movement and its interaction with the material.
● Barrel Walls and Heat Sources: Define the barrel's walls and include any heating elements that simulate heat input during the extrusion process. Accurate thermal conditions will help you simulate the melting and flow of the material.
There are different types of analyses you can choose from depending on your objectives:
● Transient Heat Transfer: If you want to simulate the time-dependent changes in temperature as material flows through the extruder, this type of analysis is suitable.
● Steady-State Flow: For constant conditions, such as in many extrusion processes, steady-state flow analysis is more appropriate.
The next step is meshing the model, which breaks the geometry into smaller elements to solve the flow equations. SOLIDWORKS Flow Simulation automatically generates the mesh based on the geometry of your extruder model.
● Mesh Refinement: While SOLIDWORKS generates a base mesh, you may need to refine it, especially in regions with complex geometries, like the screw flights and barrel surface. A finer mesh captures more detailed fluid flow and heat distribution.
To ensure the mesh is refined in critical areas, such as the screw flight, you can manually adjust the mesh density. The goal is to capture detailed flow characteristics while keeping the mesh computationally efficient.
● Troubleshooting Mesh Issues: If you encounter problems such as "mesh generation terminated," check for geometry issues and refine the mesh to better capture the CAD details. Ensuring that the mesh resolves intricate features is essential for accurate simulation.
Once the setup is complete, run the solver to compute the temperature, pressure, and velocity fields within the single screw extruder. The solver will calculate how the material flows, the heat distribution, and the pressure variations throughout the system.
● Simulation Output: After running the simulation, you’ll get data for the temperature and pressure distribution, as well as velocity profiles inside the screw and barrel.
Analyze the simulation results to gain insights into the flow patterns, heat distribution, and pressure gradients:
● Flow Patterns: Observe how the material moves inside the extruder, checking for areas where flow may be restricted.
● Heat Distribution: Identify any hotspots in the extruder that may lead to uneven material processing.
Compare the simulation results with real-world test data or known engineering principles to validate your model’s accuracy.
● Optimization: Use the simulation data to optimize the extruder’s design, adjusting parameters such as screw speed or barrel temperature for improved performance.
Flow simulations help optimize the single screw extruder’s throughput and efficiency by adjusting screw speeds and material flow rates. Proper adjustments can lead to better material handling and faster production cycles.
SOLIDWORKS simulations provide valuable information on thermal management. You can identify and optimize areas where heat dissipation or heating is needed, ensuring efficient material melting and processing.
Simulating material flow, shear sensitivity, and pressure conditions helps in evaluating how the extruder will perform with different polymers. This analysis allows for better material choice and process adjustments.
Ensure that the extruder model is correctly designed, with no gaps or errors, which might affect the accuracy of the simulation. Regularly check for geometry problems before running simulations.
Mesh refinement can be challenging, particularly in areas with complex geometries. Ensure that the mesh is fine enough to capture all critical features while avoiding unnecessary computational load.
Customizing boundary conditions for the screw and barrel can improve the realism of the simulation. Adjust these settings to reflect real-world conditions more accurately.
Modeling a PVC Window Profile Machine - Eans Machinery in SOLIDWORKS is essential for optimizing design. With proper setup, meshing, and analysis, you can predict material behavior, optimize throughput, and ensure thermal efficiency.
Using SOLIDWORKS Flow Simulation helps refine designs, improve performance, reduce costs, and enhance production efficiency. By integrating simulations directly into SOLIDWORKS, you streamline the prototyping process and avoid costly trial-and-error.

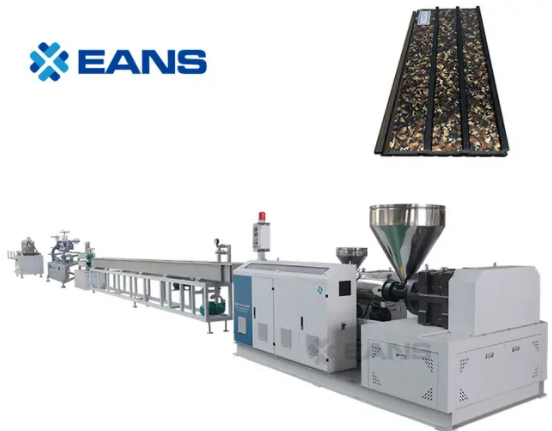

Eans Machinery offers advanced single screw extruders designed to enhance your production process, providing efficiency and value.
A: A single screw extruder is a machine used to melt and shape plastic materials by pushing them through a die using a rotating screw inside a barrel.
A: First, create a 3D model of the extruder, ensuring it's a closed volume. Then, use the SOLIDWORKS Flow Simulation Wizard to set fluid properties, boundary conditions, and heat sources before running the solver.
A: Flow simulation helps predict material behavior, optimize throughput, and ensure thermal efficiency, enabling better design decisions and reducing physical testing costs.
A: SOLIDWORKS provides integrated design and simulation tools, allowing faster iterations, optimized designs, and seamless analysis without needing separate software.
A: Ensure your model is error-free and check for geometry problems. Refine the mesh in critical areas, like screw flights, for better accuracy.
