Ever wondered how plastic materials are shaped into the everyday products we use? A
plastic extruder plays a crucial role in this process. It's a key tool in industries like construction, packaging, and automotive.
In this post, we’ll explore what a plastic extruder is, how it works, and its importance in manufacturing. You'll also learn about its applications and how it shapes products in various industries.
Understanding the Plastic Extrusion Process
What is Plastic Extrusion?
Plastic extrusion is a manufacturing process that turns raw thermoplastic materials into continuous shapes. It involves melting plastic and pushing it through a mold, or die, to create uniform profiles. The extruded plastic solidifies into its final shape as it cools.
The main idea is to transform the material from its granular form into a continuous product, like pipes, sheets, or films. Plastic extrusion is widely used in industries such as construction, packaging, and automotive manufacturing.
How Does a Plastic Extruder Work?
Plastic extrusion involves several steps. First, raw plastic material, like pellets or granules, enters the extruder through the hopper. It’s then heated by a rotating screw inside the barrel. The screw pushes the plastic forward, melting it as it goes.
The molten plastic is forced through a die that shapes it into the desired profile. The cooled extrudate exits the machine, usually through a water bath or cooling rolls, solidifying as it moves along.
Key components of the plastic extrusion process include the hopper, screw, barrel, die, and cooling system. Each part plays a vital role in ensuring the plastic is heated, shaped, and cooled properly for consistent results.
What Are the Components of a Plastic Extruder?
The plastic extruder has several important components:
Hopper: This is where the plastic material is loaded.
Feed Throat: It transfers the material into the barrel.
Screw: The rotating screw melts and pushes the plastic forward.
Barrel: The barrel heats the plastic as it moves along.
Die: The die shapes the melted plastic into its final form.
Cooling System: It cools the extruded plastic to solidify it.
Each component works together to ensure the plastic is transformed efficiently and consistently into the desired product.
Types of Plastic Extruders
What is a Single-Screw Extruder?
A single-screw extruder is the most common type of plastic extruder. It consists of a single rotating screw inside a barrel that pushes plastic material forward. As the screw turns, it heats and melts the plastic, forcing it through a die to form the desired shape.
Single-screw extruders are ideal for simple shapes like pipes, sheets, and films. They are cost-effective, easy to operate, and perform well with materials that flow easily. However, they have limitations when handling more complex materials or requiring precise mixing.
Applications: Pipes, profiles, films, sheets
Benefits: Simple design, low cost, high-speed production
Limitations: Limited mixing ability, less suitable for complex materials

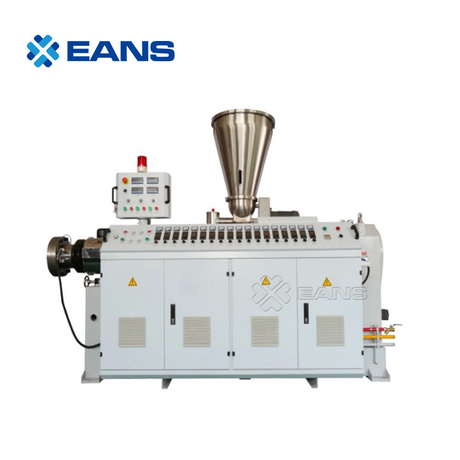

What is a Twin-Screw Extruder?
A
twin-screw extruder features two interlocking screws that rotate either in the same direction (co-rotating) or in opposite directions (counter-rotating). This design allows for better material mixing, which makes twin-screw extruders ideal for more complex or mixed-material products.
Co-rotating twin-screw extruders are commonly used in applications where uniform material blending and high processing speeds are needed. Counter-rotating models are beneficial when handling materials that require a more controlled mixing process.
Advantages over Single-Screw Extruders:
Applications: Food packaging, medical supplies, advanced polymer blends
Other Types of Plastic Extruders
While single-screw and twin-screw extruders are the most common, other specialized extruders are used for specific applications.
Planetary Extruders: These feature multiple rotating screws that work in coordination. They offer superior mixing and are often used for high-quality or specialized products.
Custom Plastic Extruders: These are designed for unique, specific applications where traditional extruders can't meet the requirements.
When to Use Them:
Planetary extruders are ideal for handling complex, high-performance materials.
Custom extruders are used for niche or very specific manufacturing needs.
How Plastic Extruders Work in Detail
Material Feeding
The process starts when raw plastic materials, such as granules, pellets, or powder, are fed into the extruder. These materials enter through the **hopper**, which is the first step in the process. The feed throat then moves the material into the barrel, where the extrusion process begins.
The hopper ensures a steady flow of plastic into the system. It acts as the gateway to the extruder, preparing the raw materials for the heating and melting stages.
Melting and Heating Process
Once inside the extruder, the plastic material is heated and melted by the rotating screw inside the barrel. The screw moves the material through the barrel, causing friction and pressure. The barrel itself is equipped with heaters to regulate the temperature.
Temperature control is crucial to prevent the plastic from overheating and degrading. This ensures the plastic melts evenly and retains its desirable properties.
Filtration and Back Pressure
As the molten plastic moves through the barrel, it passes through a breaker plate and screen pack. The breaker plate filters out contaminants, ensuring that the extruded plastic is free from impurities.
The back pressure generated by the breaker plate helps maintain consistent pressure inside the barrel. This pressure also ensures that the molten plastic flows uniformly, aiding in a consistent and high-quality extrusion.
Shaping the Extruded Material
The molten plastic reaches the die, a tool that shapes it into its final form. The die’s opening determines the profile of the extruded material, such as pipes, sheets, or tubes.
Different types of dies are used for various profiles, and each die is designed specifically for the intended product. The plastic flows through the die, taking on the desired shape as it exits the extruder.
Cooling and Solidification
After the plastic exits the die, it must cool and solidify to retain its shape. This is typically done by passing the extruded material through a water bath or using cooling rolls. The cooling rate is controlled carefully to ensure the final product is strong and precise.
Proper cooling is essential for maintaining the material’s dimensions and ensuring the extruded product is durable.
Common Applications of Plastic Extruders
Plastic Extrusion in Construction
Plastic extruders are widely used in the construction industry to create essential components like pipes, profiles, and structural parts. Extruded plastic pipes, such as PVC, are commonly used in plumbing, electrical conduit, and drainage systems. They offer durability, flexibility, and resistance to corrosion.
Plastic profiles, such as window and door frames, weatherstripping, and gaskets, are also produced using extrusion. These profiles are lightweight, weather-resistant, and cost-effective, making them ideal for building applications.
Plastic Extrusion in Packaging
In the packaging industry, plastic extrusion is used to produce a variety of products like films, bags, and containers. Flexible packaging materials, such as plastic films, are created through extrusion and are commonly used for food packaging, medical supplies, and consumer goods.
The extrusion process allows for the creation of thin, uniform films that can be used for bags, pouches, and wraps. It also enables the production of sturdy plastic containers for liquids and food products, ensuring they are safe and durable.
Plastic Extrusion in Automotive and Electrical Industries
Plastic extruders are essential in the automotive and electrical industries for producing various parts. In the automotive sector, extruded plastic profiles are used for trim, seals, and other components. These parts are lightweight, resistant to chemicals, and can withstand harsh weather conditions.
In the electrical industry, plastic extrusion is used to create wire insulation. This ensures that wires are safe, protected from damage, and meet industry standards for electrical conductivity and safety.
Advantages and Disadvantages of Plastic Extrusion
Advantages of Plastic Extrusion
High-Volume Production
One of the biggest advantages of plastic extrusion is its ability to produce large quantities of products continuously. The process is highly efficient, making it ideal for high-volume manufacturing. Once the extrusion line is set up, it can run non-stop, producing products quickly and consistently.
This continuous flow reduces downtime and maximizes output, allowing manufacturers to meet high demands with minimal interruption.
Versatility and Design Flexibility
Plastic extrusion is incredibly versatile. It allows manufacturers to create a wide variety of shapes and profiles, from simple pipes to more complex designs like window frames and automotive parts. The process is flexible enough to handle different materials, including PVC, polyethylene, and polypropylene.
Extrusion also offers design flexibility, allowing for custom profiles, hollow sections, and unique surface textures. This adaptability is key for industries that require specialized products.
Cost-Effectiveness
The continuous nature of plastic extrusion helps reduce manufacturing costs. Since the process is automated, it minimizes labor costs and the need for complex machinery. Additionally, the speed and efficiency of extrusion lines mean less material waste and fewer setup adjustments.
The ability to produce large quantities quickly and with minimal waste makes plastic extrusion a cost-effective choice for high-demand industries.
Disadvantages of Plastic Extrusion
High Initial Setup Costs
Setting up a plastic extrusion line requires a significant investment in equipment, such as the extruder itself, dies, and cooling systems. The cost of installing and configuring the machinery can be high, making it challenging for smaller companies or low-volume producers to afford.
Along with equipment costs, there are also expenses for setting up proper facilities, training staff, and maintaining the system over time.
Limitations in Complex Shapes
While plastic extrusion is versatile, it has its limitations. It is most effective for creating continuous profiles with a uniform cross-section. Producing highly complex or intricate shapes may not be possible, as extrusion is best suited for simple and regular designs.
For more detailed and customized shapes, other manufacturing methods like injection molding or rotational molding may be more suitable.
Size Variation Issues
During the extrusion process, controlling the size of the product can be challenging. As plastic is melted and pushed through the die, it can expand or shrink due to cooling, causing slight variations in size. These changes can affect the final product's precision, especially in applications where exact measurements are critical.
To mitigate these issues, manufacturers must carefully control cooling rates and monitor the extrusion process closely to ensure consistent results.
Maintenance and Care for Plastic Extruders
Regular Cleaning
Keeping a plastic extruder clean is essential for maintaining its performance and avoiding contamination. Any leftover material, dust, or debris can interfere with the extrusion process, leading to defects in the final product.
Regular cleaning helps prevent these issues, ensuring the extruder runs efficiently. It's important to clean components like the hopper, screw, and die to avoid blockages and contamination.
Lubrication and Inspections
To prevent wear and tear, the extruder's moving parts, such as the screw and barrel, must be regularly lubricated. Proper lubrication reduces friction, helping the machine work smoothly and extending its lifespan.
Regular inspections should be done to check for signs of wear. Inspecting the screw, barrel, and seals ensures any potential issues are caught early before they lead to major repairs.
Monitoring Temperature and Pressure
Maintaining the correct temperature and pressure is key to successful plastic extrusion. Operators should closely monitor these conditions throughout the process to ensure optimal results. If the temperature or pressure deviates too much, it can affect the consistency of the extruded material.
Having proper controls in place, such as temperature sensors and pressure gauges, allows operators to adjust settings and maintain smooth production.
Choosing the Right Plastic Extruder for Your Needs
Factors to Consider
When choosing a plastic extruder, several factors should be considered to ensure it meets your production needs. The material type is essential because different extruders handle different thermoplastics. For example, some extruders are better suited for rigid materials, while others handle flexible ones more efficiently.
Production volume is another key factor. High-volume production may require more robust, high-speed extruders, while smaller operations may benefit from simpler, cost-effective models.
Consider the desired product shapes as well. If you need custom profiles, you may need a more flexible system. Lastly, budget plays a significant role. High-end extruders offer advanced features, but they come at a higher cost.
Single-Screw vs. Twin-Screw Extruders
Choosing between single-screw and twin-screw extruders depends on your production needs.
Single-Screw Extruders: These are more affordable and simple to operate. They work well for producing basic shapes like pipes, sheets, and films. However, they’re less efficient when mixing complex materials or creating intricate shapes.
Twin-Screw Extruders: These are ideal for more demanding applications. They offer better mixing and are faster, which is crucial for complex or blended materials. However, they are more expensive and may require more maintenance.
Choosing the right extruder depends on the complexity of the materials and the shapes you need, as well as the volume of production required.
The Future of Plastic Extrusion
Technological Advancements
The future of plastic extrusion is driven by automation and smart systems. These advancements are making the process faster, more efficient, and less reliant on manual labor. Automated extruders can adjust parameters like temperature and pressure in real time, ensuring higher precision and reduced errors.
Smart systems can also predict maintenance needs, preventing costly breakdowns and downtime. With better control over the extrusion process, manufacturers can improve product consistency and reduce waste, making production lines more efficient overall.
Sustainable Practices in Plastic Extrusion
The plastic extrusion industry is evolving towards sustainability, focusing on reducing environmental impact. One of the key changes is the increased use of **recycled materials**. Many manufacturers are now using recycled plastics in their extrusion processes, which helps reduce waste and conserve resources.
Additionally, there’s a growing focus on **eco-friendly materials**. Biodegradable plastics and renewable materials are becoming more common in extrusion processes. These changes align with the global push toward sustainability, helping industries meet regulatory standards and consumer demand for more environmentally friendly products.
Conclusion
Plastic extruders play a vital role in shaping materials for various industries. They are essential for producing high-quality, consistent products. With advancements in technology and sustainability, the future of plastic extrusion looks promising. By using plastic extrusion, manufacturers can increase efficiency, reduce costs, and explore eco-friendly options.
If you’re looking to enhance your manufacturing processes, plastic extrusion could be the solution you need.
FAQ About Plastic Extruders
Q: What is the purpose of a plastic extruder?
A: A plastic extruder is used to shape thermoplastic materials into continuous profiles, such as pipes, sheets, and films, through heating and molding.
Q: How does a plastic extruder work?
A: The extruder heats and melts plastic materials, then forces them through a die to form the desired shape, followed by cooling to solidify the product.
Q: What materials can be processed with a plastic extruder?
A: Common materials include PVC, polyethylene, polypropylene, ABS, and polystyrene.
Q: What are the different types of plastic extruders?
A: The main types are single-screw and twin-screw extruders, with each offering unique benefits for different production needs.
Q: How can I choose the right plastic extruder for my business?
A: Consider factors such as material type, production volume, desired product shapes, and budget.
Q: What are the advantages of using a plastic extruder?
A: Advantages include high-volume production, versatility in design, and cost-effectiveness.
Q: What are the common applications of plastic extruders?
A: Common applications include construction (pipes, profiles), packaging (films, bags), and automotive/electrical (insulation, parts).
Q: What are the maintenance requirements for a plastic extruder?
A: Regular cleaning, lubrication, inspections, and monitoring temperature and pressure are essential for proper maintenance.
Q: Can a plastic extruder produce complex shapes?
A: Plastic extrusion is best for continuous profiles; more complex shapes may require other methods like injection molding.
Q: How does the cooling process work in plastic extrusion?
A: The extruded plastic is cooled through water baths or cooling rolls to solidify and retain its shape.
Q: Is plastic extrusion an eco-friendly process?
A: The industry is moving toward sustainability by using recycled materials and eco-friendly plastics, reducing waste and environmental impact.
