B2B pipe manufacturers face a constant balancing act. You must scale production capacity to meet growing market demands. At the same time, you must manage rising energy costs and limited factory floor space. Upgrading your facility or building a new plant involves critical choices. One fundamental decision stands out. Should you invest in traditional single-out systems? Or is it smarter to adopt a dual-output configuration?
We wrote this article to strip away the marketing hype. B2B buyers need clear, actionable data. We provide a transparent comparison based on production realities. Our goal is simple. We want to help buyers make an evidence-based capital equipment decision. By understanding the core mechanics of both options, you can protect your margins and plan your factory layout with greater confidence.
Double-out lines offer significantly lower capital expenditure and footprint per pipe produced, but are strictly limited to smaller pipe diameters (typically 16mm–110mm).
Single-out lines provide maximum flexibility and operational independence, making them safer for custom runs, frequent size changes, and large-diameter production.
Energy and labor efficiency are major advantages of double-out systems, but these must be weighed against the risk of doubled downtime if the main extruder requires maintenance.
Pipe margins depend heavily on output efficiency. Scaling up usually means buying more machines. This traditional approach requires more space. It requires more operators. It also demands higher peak energy loads. Factory managers face a constant dilemma. You want to double output without doubling overhead. Choosing the right machinery architecture is the first step.
Every square meter of factory space carries a specific cost. Operational expenditures eat into gross margins daily. When order volumes surge, plant managers often simply order another standard production line. This linear expansion model creates rapid bloat. Factories quickly run out of room. Power grids reach maximum capacity limits. You need a smarter way to scale volume without stretching resources.
The standard single-out system serves as the industry baseline. This setup features one extruder and one mold. It uses a single downstream cooling tank and haul-off unit. It remains incredibly reliable. Operators understand it easily. Troubleshooting takes very little time. However, capacity scales linearly. To get twice the pipe volume, you spend twice the capital.

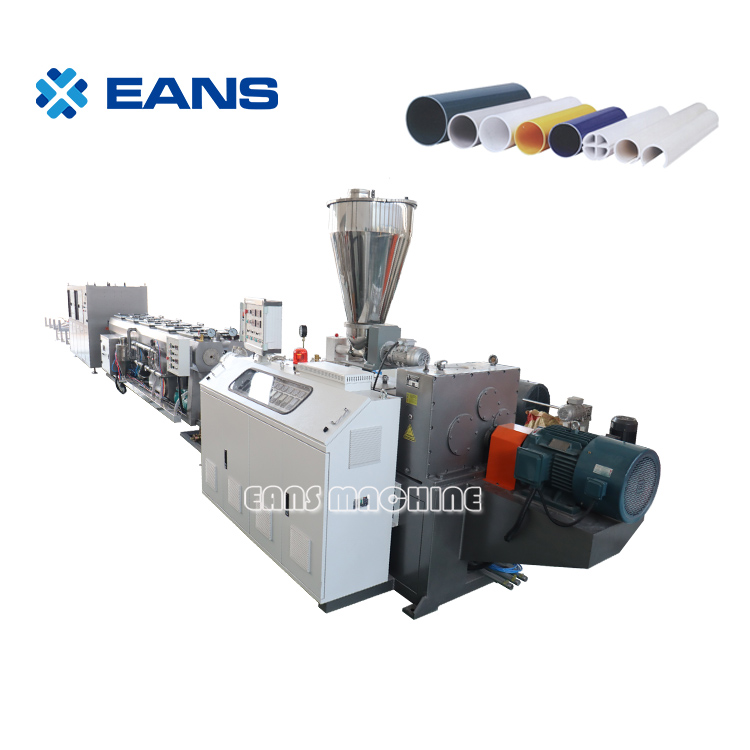

Equipment engineers designed the dual-output alternative specifically for volume. This configuration uses one high-capacity extruder. It feeds a specialized bifurcation mold. The mold splits the polymer melt into two separate downstream paths. You get two calibration tanks, two haul-offs, and two cutters. A modern double-out pvc pipe line dramatically alters the traditional cost-to-output ratio. It produces two pipes simultaneously from a single raw material feed.
Comparing these two systems requires looking beyond the initial sticker price. You must examine facility utilization, energy use, and operator ratios. These variables define long-term production performance.
Floor space is a premium asset in any manufacturing plant. Two separate single-out lines consume vast amounts of square footage. They require adequate walking space between them for operator safety. A double-out line condenses this footprint. You eliminate the need for a second main extruder motor and gearbox. You also uncover hidden savings. You only need one set of plumbing connections. You only wire one main electrical panel. You only install one raw material vacuum feeding system.
Power bills represent a massive portion of operating costs. Double-out configurations offer a distinct thermodynamic advantage. Heating one larger twin-screw extruder barrel proves more energy-efficient. You melt enough PVC for two pipes using a single, optimized heat zone profile. Running two separate, smaller extruders wastes heat. Two smaller motors draw more combined startup current than one large motor. This power efficiency directly increases profit margins per kilogram of PVC processed.
Labor shortages continue to challenge the plastics industry. Finding skilled extrusion operators is difficult. Single lines typically require one operator per machine. A dual-output system changes this math. One skilled technician can monitor a single master control panel. They manage two output streams simultaneously. This doubles your labor efficiency ratio. You produce twice the conduit volume without doubling your payroll.
Summary Comparison Chart
Evaluation Metric | Single-Out System | Double-Out System |
|---|---|---|
Floor Space Required | High (Linear scaling) | Low (Condensed footprint) |
Energy Efficiency | Standard baseline | Excellent (Shared heating zones) |
Operator Ratio | 1 Operator : 1 Output | 1 Operator : 2 Outputs |
Infrastructure Cost | Double plumbing/wiring | Single source connections |
Dual-output systems look excellent on paper. However, they carry strict technical limitations. You must match the equipment to your specific production reality.
Dual-output physics restrict production to smaller items. They excel at electrical conduits, small water supply lines, and basic drainage pipes. The industry standard limit hovers around 110mm. Attempting medium-to-large diameters on a bifurcated mold creates severe problems. You risk uneven melt pressure between the two exit dies. This causes fatal wall thickness variations. Large pipes require massive cooling capacities. A dual setup cannot easily accommodate the required water volume for large diameters.
You must address the harsh operational reality of shared downtime. A double-out line marries two downstream processes to one extruder. This creates a critical single point of failure. If the left haul-off unit jams, you must stop the entire line. If the right cutter blade dulls, both pipe streams halt. When the main twin-screw extruder requires cleaning, you lose double the production capacity. This shared risk requires impeccable preventative maintenance protocols.
Bifurcated molds are complex pieces of engineering. They cost significantly more to replace than standard single molds. Tuning them for perfect concentricity takes deep expertise. The operator must balance the melt flow perfectly between the two dies. If one side flows faster, scrap rates skyrocket. Maintenance teams must possess higher diagnostic skills to troubleshoot these shared-flow dynamics.
Flexibility often outweighs raw speed in custom manufacturing. Single-out lines remain vastly superior for agile factories. They handle frequent mold changes easily. They manage small, custom batch runs without massive downtime. A double-out system demands long, uninterrupted production runs to be practical. Changing a dual mold takes significantly longer. This eats into your daily production hours.
Common Mistakes to Avoid
Assuming a dual-line can run two different pipe diameters simultaneously. (Melt pressure imbalances make this nearly impossible).
Purchasing a dual-line for low-volume, highly customized orders.
Underestimating the cooling water volume required for two simultaneous high-speed lines.
Failing to train operators on balancing dual-die melt flow.
Selecting the right machinery depends entirely on your business model. No single technology fits every factory. Use this matrix to guide your final procurement strategy.
Your product mix requires frequent diameter or material changes.
You are manufacturing large-diameter pressure pipes.
You produce specialized profiles with complex geometries.
Minimizing single-point-of-failure risks is critical to your supply chain.
Your team handles mostly short, custom batch runs.
You have high-volume, continuous runs of small-diameter PVC pipes.
You primarily produce electrical conduits or standard water lines.
Factory floor space is at a premium and expansion is not an option.
You are looking to aggressively lower the unit cost of commoditized pipes.
You struggle with operator labor shortages.
Do not rely on manufacturer brochures alone. Take concrete steps to audit your own facility first. Audit your current product mix. Categorize your orders into high-volume and high-mix buckets. Calculate your exact floor space costs per square meter. Next, consult reputable machinery manufacturers. Ask them for specific power-consumption data based on your target capacity. Demand a customized equipment assessment before signing any purchase orders.
We can confidently state that neither system is universally superior. The best choice depends entirely on your factory's specific product mix. It depends on your production volume and facility constraints. Double-out configurations easily win on pure scale. They dominate energy metrics and footprint utilization. However, single-out configurations win on flexibility. They provide unmatched uptime protection and handle large diameters perfectly.
Evaluate your highest-volume SKUs. If you run endless kilometers of 20mm conduit, a dual system changes your business trajectory. If you switch sizes three times a week, stick to single lines. We prompt you to contact an experienced engineering consultant. Speak to a technical sales team. Ask for a custom equipment assessment based on your specific local energy rates and output goals.
A: The standard industry limit is typically around 110mm. Beyond this size, managing the melt pressure inside a bifurcated mold becomes highly unstable. Large diameters also require immense cooling capacity, making it technically impractical to run two large pipes side-by-side efficiently.
A: Yes. You need a higher-capacity conical or parallel twin-screw extruder. This main unit must handle the dramatically increased throughput demand. A standard single-line extruder cannot melt and push enough PVC compound to feed two downstream extrusion paths simultaneously.
A: Technically, it is highly discouraged. Running different diameters requires different haul-off speeds, cooling times, and melt pressures. Balancing these conflicting physics within a single shared die block causes severe quality issues. It is best practice to run identical pipes simultaneously.
